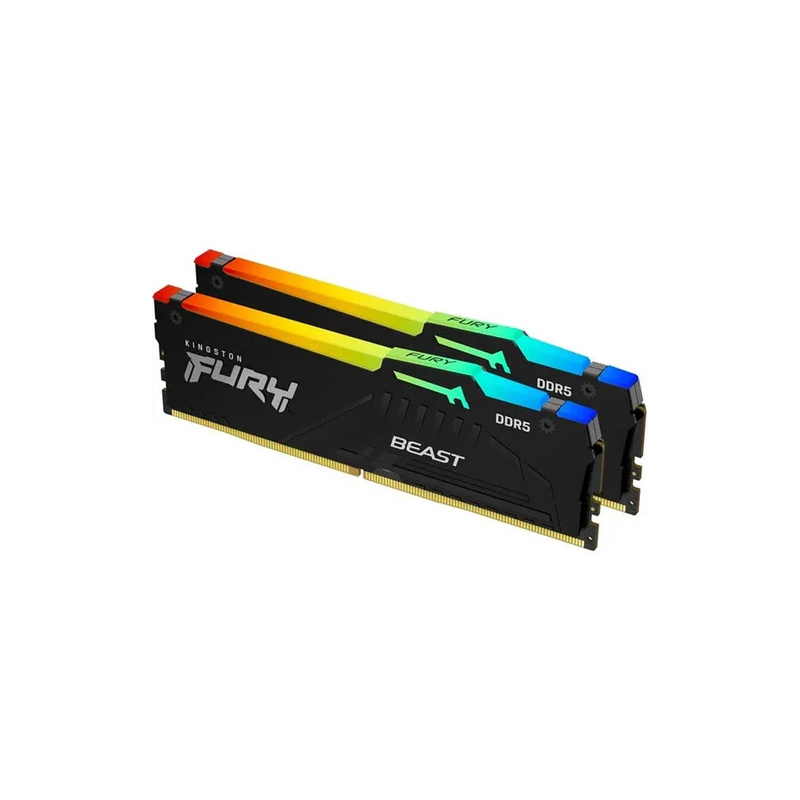

KINGSTON FURY Beast 32GB DDR5 RAM Atmintis | 5600 MT/s, CL36, 2x16GB, Black, RGB

Kingston FURY KF556C36BBEAK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.0 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• EXPO Profile #0: DDR5-5600 CL36-38-38 @1.25V
• EXPO Profile #1: DDR5-5200 CL40-40-40 @1.25V
• XMP Profile #1: DDR5-5600 CL36-38-38 @1.25V
• XMP Profile #2: DDR5-5200 CL40-40-40 @1.25V

FEATURES

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.66” (42.23mm), w/heatsink
